Welcome to my Radiance Miscellany page! I decided to create a page specifically for all the little tools and textures and hints that I have collected for Radiance over the past few years, and this is it. I hope you find at least SOME of this stuff useful. =O)

You may first want to check out some of these pages:

Radiance - the main page
hftools page - Heightfield and triangle mesh tools for landscape rendering in Radiance
World Builder page - programs and utilities to aid in physically defining a universe
My Radiance gallery - a gallery of my Radiance-rendered artwork and animations thru the ages

Procedural patterns and textures

skycolor.cal
This colorfunc pattern can be used to describe a sky brightness and color based on the same inputs as skybright, plus several RGB colors, including zenith, nadir, horizon, and sun colors.
skycolor.cal

windowpat.cal
This procedure can be used to create a regular rectangular pattern of windows, panels, what-have-you, on a variety of objects: polygons, spheres, cylinders, and cones, oriented at any angle. The pattern should even be continuous arcoss a multi-faceted surface if used properly. Shown at left is an application on a cone-shaped building. Also, note the use of skycolor.
windowpat.cal

groundcolor.cal
This colorfunc pattern can be applied to a large-scale ground surface to give the appearance of land cover bands of blue, green, brown and white. It's not that great.
groundcolor.cal

sphere.cal
This function file is for coordinate mapping onto a sphere, and is meant to replace ball.cal and globe.cal if tiling is not desired (as it is not with the commonly-avaliable planetary maps). sphere.cal was used to map not only an image of the moon's surface to the sphere, but an image of the night sky to the background. You can find these 2:1 aspect ratio files here and here. Star maps and planet maps can be found at Tycho Catalog Skymap.
sphere.cal

Mars skies
Here are some tools you can use to create a Martian sky. I have not incorporated the exact Mars analemma into the mars_sun code, a basic conversion is used instead. More examples of the sky can be found in the radmisc directory. The routines listed below are still being worked on, but feel free to try them out.
mars_gensky.c
mars_sun.c
mars_skycolor.cal

Programs

lparser for Radiance
I modified Laurens Lapre's lparser program to allow export to Radiance format. The branches can be exported using cylinders, or a much-nicer cone/sphere format. All leaves are polygons.
lparser.c
lparser.txt

PovRockGen
I modified Steven Pigeon's PovRockGen program to allow export to Wavefront (.obj) format. It currently supports non-smoothed triangles. I am working on a more general Wavefront-output rock generator toolkit, but who knows when that'll be ready?
rockgen.tar.gz - Wavefront output
PovRockUnix.tar - POV for Unix

Rocktools
Rocktools is a set of tools for creation and manipulation of open and closed triangle meshes, ideally suited for creating 3D meshes of rocks, landscapes, and rough shapes. The programs now available with the toolkit now are: rockcreate, rockdetail, rocksmooth,rocktrim, and rockerode, Most programs can write output to Wavefront (.obj), POV mesh (.pov), Radiance (.rad), Renderman polygon (.rib), irregular triangular network (.tin), and raw formats.
Rocktools homepage

hf2rad - converts 16-bit ASCII PGM to Radiance input file
tin2rad - converts a TIN file to Radiance input file

Modelling, Rendering, and other stuff

Benchmark test for Radiance

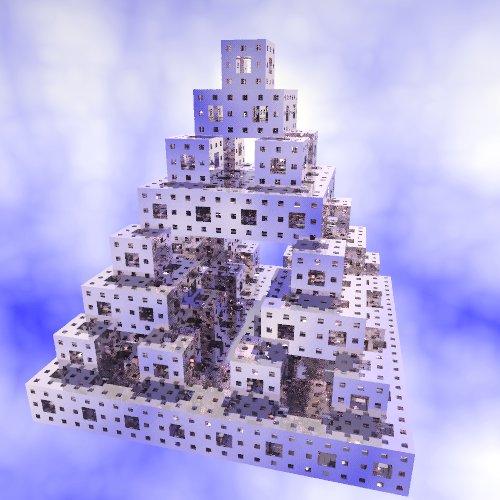

I borrowed this Radiance benchmark scene from Paul Bourke. Follow the links below to view a page dedicated to collecting data from this speed test run on various computers, and Paul Bourke's original page.
My Radiance benchmark page
Paul Bourke's original page

Resolution and filtering test for Radiance
A test of oversampling resolution and filtering method shows the best methods to use for smooth, anti-aliased images from Radiance.
Radiance resolution test page

Ambient and penumbra test for Radiance
Setting -aa 0 and running a matrix of tests gives us valuable information for parameter tuning for very large models and very high resolution runs.
Radiance ambient and penumbra test page
